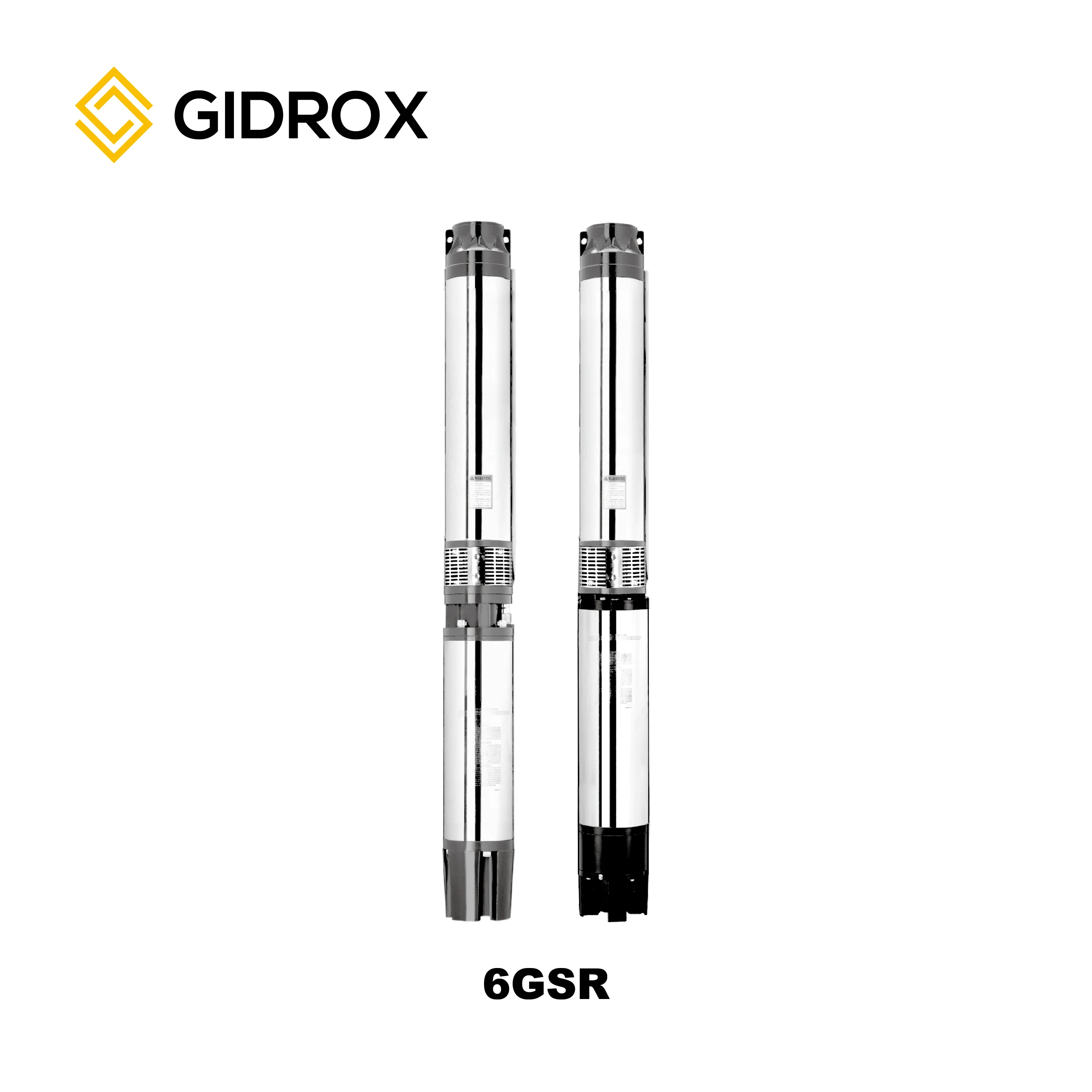

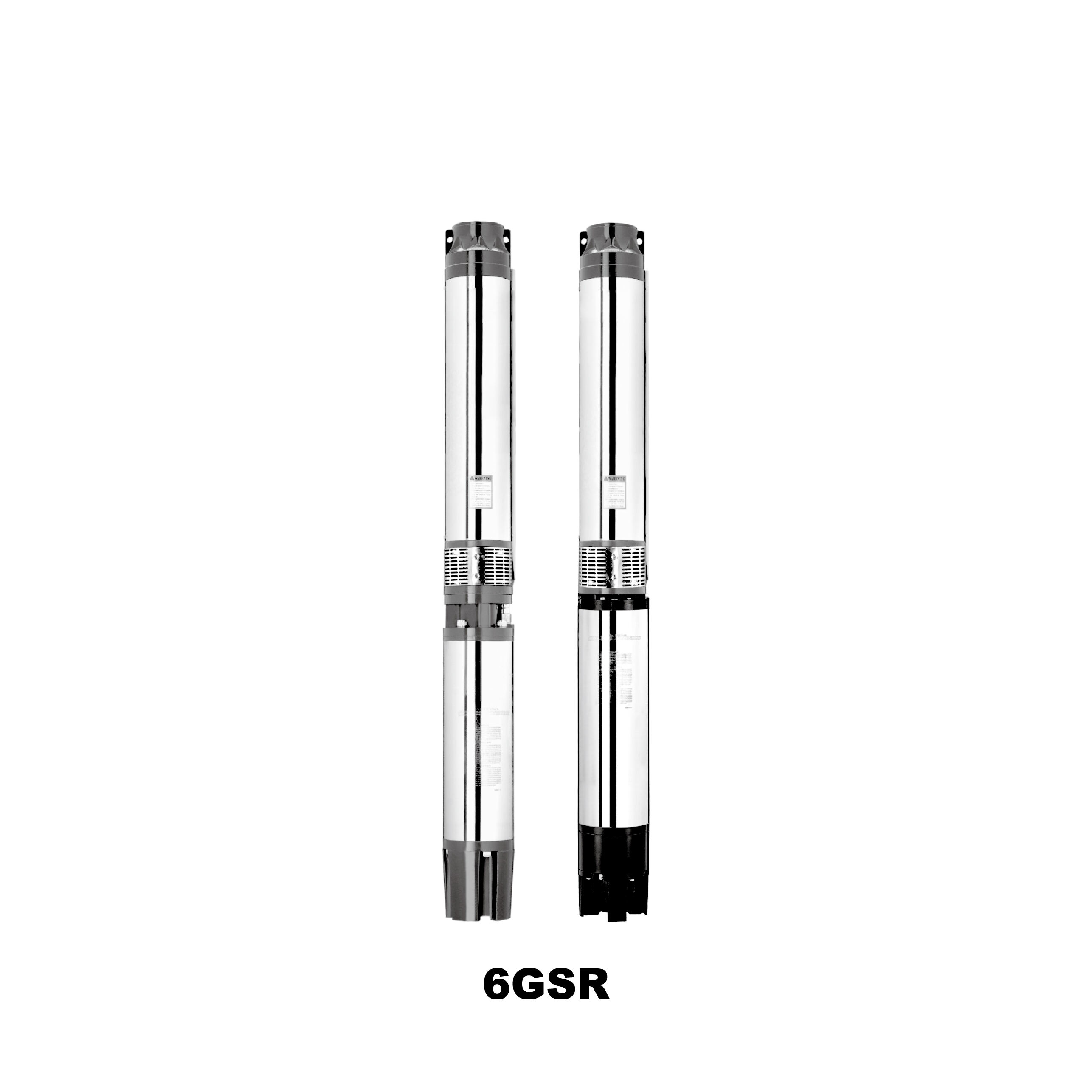

GIDROX 6SR series 400m deep well submersible centrifugal pump 5hp deep well submersible water pumps

Brand: GIDROX

The GIDROX 6SR series 400m deeply well pump that is submersible is centrifugal deeply well submersible water pump is perfect for supplying a dependable and constant water supply from deep wells. This GIDROX is high-quality brand that makes durable and efficient products, making sure you need to have usage of clean water in your house, farm, or other water-related applications.

This 6SR series 400m deeply well pump that is submersible is centrifugal deeply well submersible water pump was created to be very efficient, with impressive energy-saving capabilities which help to lower your water bills and wastage. Its high level efficiency makes it operates smoothly, producing minimal vibrations and sound during its operation. The 5hp engine loads of capacity to pump water from deep wells up to 400m deep with simplicity.

The GIDROX 6SR series 400m deeply well pump that is submersible is centrifugal deeply well submersible water pump includes a robust body of stainless, making this durable and resistant to harsh climate conditions. It's also extremely resistant to corrosion, ensuring it might withstand the test of times. The pump's design really helps to make certain that you can easily install and keep, decreasing the overall cost.

Because of its boost function, the GIDROX 6SR series 400m deeply well pump that is submersible is centrifugal deeply well submersible water pump is wonderful for those who demand an instant and liquid efficient supply . This function permits the pump to supply as much as 20% more water pressure, rendering it a great selection for those in need of fast and water reliable supply.

The GIDROX 6SR series 400m deeply well pump that is submersible is centrifugal deeply well submersible water pump is also fitted having a distinctive waterproof cable that guarantees its security whenever submerged in water. Its made by this particular feature perfect for used in places where waterlogging is typical. The pump even offers a control that is built-in is thermal, which protects it from overheating and stops it from getting damaged.

APPLICATION

- For water supply from wells or reservoirs - For domestic use, for civil and industrial applications - For garden use and irrigationOPERATING CONDITIONSMaximum fluid temperature up to +50°C - Maximur sand content: 0.25% - Minimum well diameter:6"MOTOR AND PUMPRewindable motor - Single-phase：220-240V/50Hz -Three-phase：380-415V/50Hz

1.Direct start (1 cable)

2.Tardelta start (2 cable)

- Equip with start control box or digital auto-control box - NEMA dimension standards - Curve tolerance according to ISO 9906

No	Item	Data
1	Title	GIDROX 6SR series 400m deep well submersible centrifugal pump 5hp deep well submersible water pumps
2	Pump external casing	AISI 304 SS
3	Delivery casing	Cast-iron ASTM N0.30
4	Suction lantern	Cast-iron ASTM N0.30
5	Diffuser	Plastic.PC & AISI 304 SS
6	Impeller	Plastic.PC
7	Shaft	AISI 304 SS
8	Shaft coupling	AISI 304 SS
9	Wear ring	AISI 304 SS
10	Motor external casing	AISI 304 SS
11	Top chock	Cast-iron ASTM NO.30
12	Bottom support	Cast-iron ASTM NO.30
13	Mechanical seal	Special seal for deep well(Graphite-Ceramic)
14	Seal	NBR Graphite-SIC/TC
15	Shaft	AISI 304 SS-ASTM 5140
